超高分子量聚乙烯化学排吸管-7373T
应用：
小波纹状外壁，具有更好的柔韧性和耐用性能，能够输送98%的工业化学品，适用于化学品生产和运输过程中的吸入和排放。7373T最长可到200英尺
技术参数：
内层： 光滑UHMW超高分子量聚乙烯
增强层：多层合成线绳加螺旋钢丝
外层： 蓝色，EPDM橡胶（小波纹状）
工作温度：-40℉到+250℉（-40℃到+121℃）
工作压力：200PSI
安全系数：4:1
超高分子量聚乙烯化学排吸管-7373T

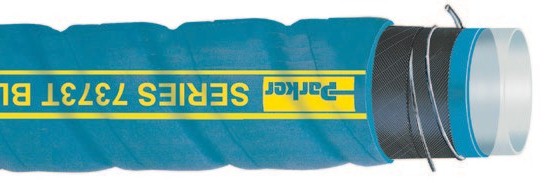

BLUE THUNDERTM -Series 7373T
Series 7373T is a high pressure, hightemperature suction and discharge hose designed to handle approximately 98% ofcommonly used acids, chemicals and solvents. The ultra-high molecular weightpolyethylene (UHMWPE) tube will not leach into and contaminate the productbeing conveyed, and features a temperature rating to 250℉ (121℃). Thecorrugated hose construction incorporates a dual wire helix that provides fullsuction capability, kink
resistance, flexibility for ease of handling,and a path to conduct a static electrical charge to ground. The cover isresistant to abrasion, mild chemicals and ozone. Series 7373T is available in200-foot continuous lengths.
Tube: Translucent ultra-high molecular weightpolyethylene (UHMWPE)
Reinforcement: Multiple textile plies with dualwire helix
Cover: Blue EPDM; corrugated wrapped finish
Temp Range: -40℉ to +250℉ (-40℃ to +121℃)
Design Factor: 4:1
Packaging: Coils
内径 | 外径 | 工作压力 | 爆破压力 | 弯曲半径 | 重量 | 包装长度 | 重量 |
(in) | (mm) | (mm) | (bar) | （bar） | (mm) | (kg/m) | (m) | （Kg/ft） |
3/4 | 19.1 | 30.3 | 13.8 | 55.2 | 76.2 | 0.58 | 30.48 | 0.18 |
1 | 25.4 | 37.0 | 13.8 | 55.2 | 76.2 | 0.82 | 30.48 | 0.25 |
1-1/4 | 31.8 | 43.2 | 13.8 | 55.2 | 101.6 | 0.95 | 30.48 | 0.29 |
1-1/2 | 38.1 | 49.9 | 13.8 | 55.2 | 127.0 | 1.18 | 30.48 | 0.36 |
2 | 50.8 | 65.0 | 13.8 | 55.2 | 152.4 | 1.90 | 30.48 | 0.58 |
2-1/2 | 63.5 | 80.1 | 13.8 | 55.2 | 177.8 | 2.55 | 30.48 | 0.78 |
3 | 76.2 | 92.6 | 13.8 | 55.2 | 177.8 | 3.14 | 30.48 | 0.96 |
4 | 101.6 | 120.0 | 13.8 | 55.2 | 203.2 | 4.49 | 30.48 | 1.37 |
